HH-60 Jayhawk 500 Size Helicopter Scale Conversion Kit from Roban - RBN-KFUH60CG5
This is the beautiful 500 class HH60 Jayhawk. Designed to take your Chaos 500 or Trex torque tube versions and transform it into a beautiful HH-60 Coast Guard scale helicopter. This kit includes everything you need to install your mechanics, including the special 5mm flex drive system specially designed for easy plug n play install in the Chaos or Align mechanics.

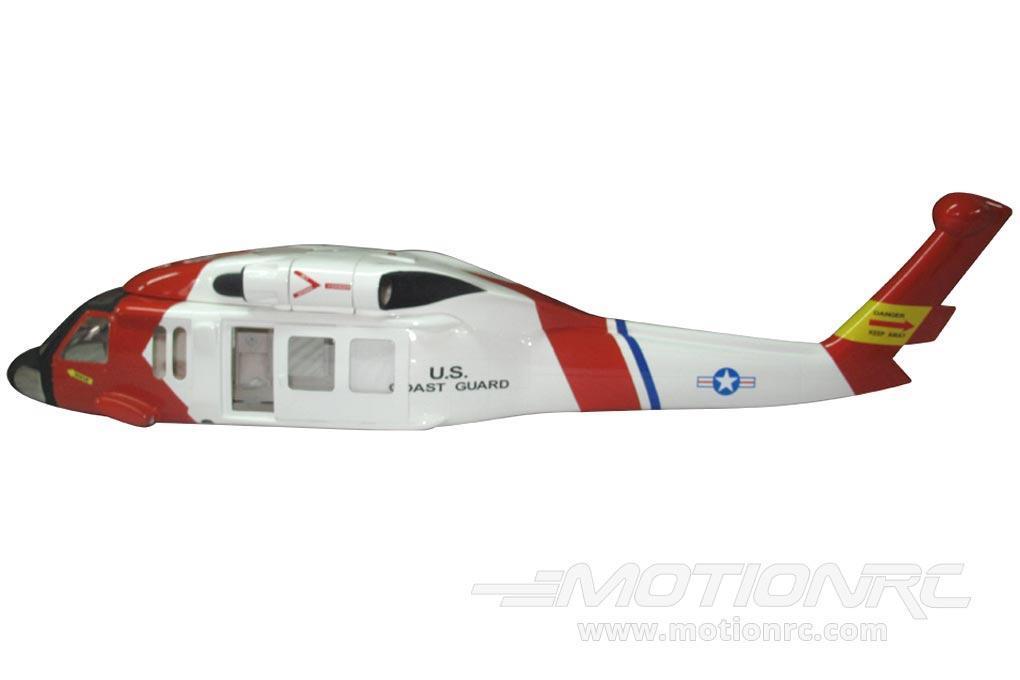

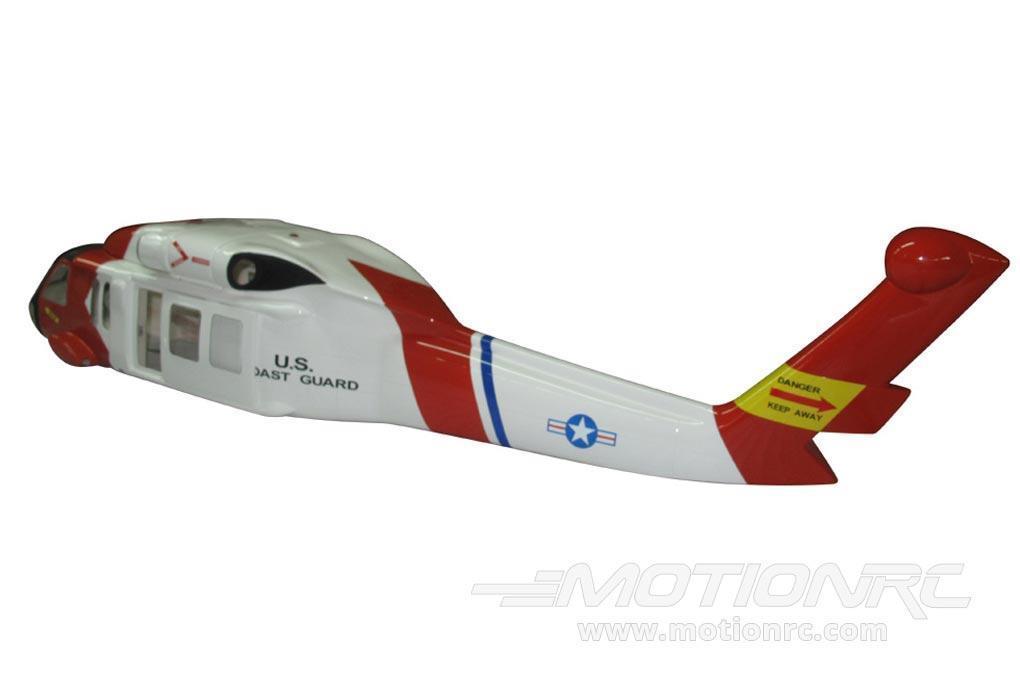

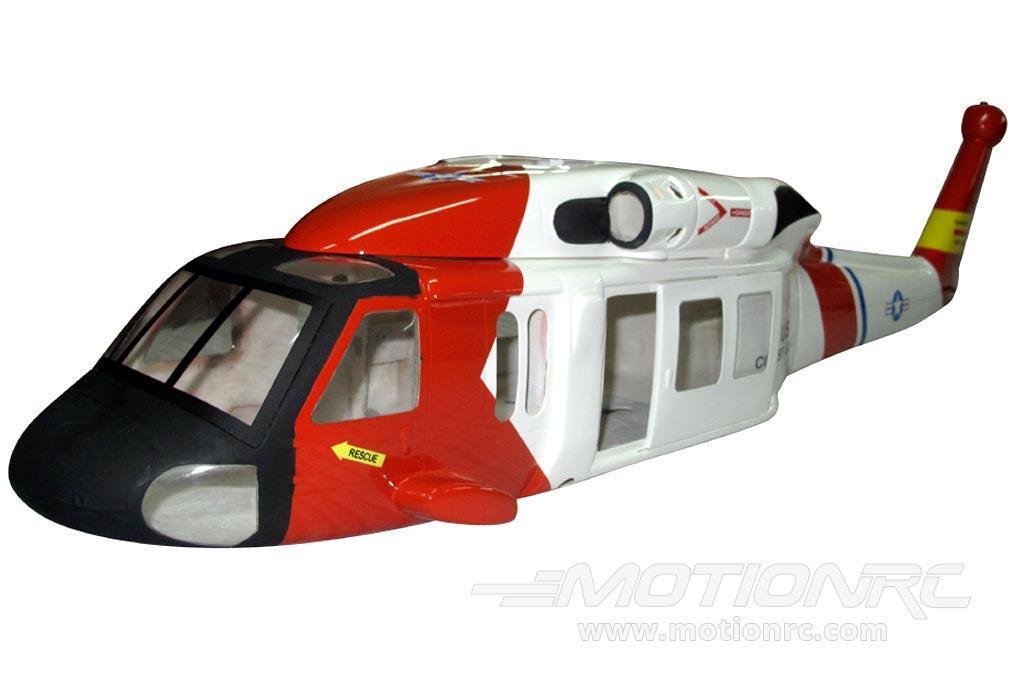

There is no extra parts to purchase to get this beautiful scale fuselage in the air. When you open the box, the fuselage is completely painted in standard automotive base coat and clear coat for a super gloss finish. Included are scale aluminum landing gear with working main and rear oleo struts. Aluminum wheels and rubber tires give this kit a very scale look.
Working sliding doors allow easy access to the mechanics as well as the entire top dog house being removable with factory installed magnets and locating pins. Designed for easy battery removal. This fuselage can be completed in as little as 4-6 hrs and is intended for the intermediate to advanced builder. No modifications needed when using stock mechanics and stock rotor head.
When planning to use a 4 blade main rotor head and 4 blade tail, it is recommended to upgrade to a lower kv motor and possibly a high voltage system using 8S (two 4S packs in series) or higher.
Features:
- Fully painted fiberglass scale fuselage
- Shaft driven tail elevated rotor set
- Parts for the elevated tail rotor
- Scale aluminum landing gear with working main and rear oleo struts
- Extremely detailed surface with molded panel lines and rivets
- Use of 500 standard equipment (6S Battery, 1400-1600kV motor), fly with your existing parts
- 1150mm long
Includes:
- Roban HH-60 Jayhawk 500 body kit
- Scale aluminum landing gear
Requires:
- 500 Size helicopter mechanics and brushless motor
- Helicopter flight controller - we recommend the Tarot ZYXS2 3-Axis Flight Controller
- Electronic speed control (ESC) - we recommend the Castle Creations Phoenix Edge 100A ESC with 5A SBEC
- Three cyclic servos - we recommend the MKS DS-1210
- Tail servo - we recommend the MKS DS8910A+
- 6 Cell 22.2V 2600-3300mAh LiPo battery - we recommend the Admiral 6 Cell 22.2V 3300 mAh LiPo Battery with XT60 connector
- 7 Channel radio - select a minimum 7 channel radio with pitch and throttle curves from our Radio Collection
- 7 Channel receiver - select a minimum 7 channel receiver from our Receiver Collection
Roban Scale Helicopters are intended for modelers who have advanced level building skills. Both ARF and KIT product formats require you to install your own electronics (ESC, servos, motor, etc). KIT product formats also require you to install your own helicopter mechanics. Because helicopter mechanics can vary greatly in size and shape, you may be required to modify the fuselage slightly (including cutting, drilling, etc.) to achieve a perfect fit. Roban fuselages are all handmade from fiberglass and therefore may have slight variation in tolerances between body panels, doors, or windows. These variations do not affect flight performance and can be easily adjusted by an experienced builder with proper tools. These precautions are intended for novice builders; an experienced modeler should have no issue achieving perfect results with these premiere scale helicopters kits.
